The Raised Ranch Panel garage door style is a popular choice for many homes because it is so classic and versatile. It can be used on newer construction and older homes, and looks great on either! The doors are made with thick, premium steel and the exterior has a detailed wood grain finish that is easy to clean and maintain. You can choose from many options, colors, and windows to fit these doors to your home. Please read below to see technical specifications and options from DoorLink.
490 & 491 Standard Features
24 GAUGE METAL
Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.
1.0 MIL PAINT SYSTEM
Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel and long life.
ROLLED SAFETY EDGES ON SECTION JOINTS
Eliminates sharp edges, and provides extra strength.
19 GAUGE HOT DIPPED GALVANIZED STILES
Heavy-duty metal styles give strong rigid support for all hinges, rollers and operator attachment.
STILES ATTACHED WITH RIVETS
Provides superior strength when compared to common sheet metal joining methods.
TONGUE AND GROOVE MEETING RAILS
For superior strength and better sealing against wind, rain, and snow.
RIGID ALUMINUM RETAINER
Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.
491 Additional Features
R-VALUE 6.85 INSULATION
Enhances your home’s energy savings, makes your door operation quieter and reduces exterior noise in your garage.
CFC FREE EXPANDED POLYSTYRENE
Environmentally friendly insulation that will not degrade with vibration or time.
HIGH IMPACT PLASTIC BACK COVER
Protects the insulation, and enhances the interior look of your garage door.
Residential Door Colors
*Example – Color may vary from actual product.

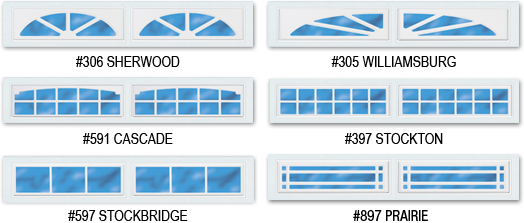

Available Windows
Sizes Available

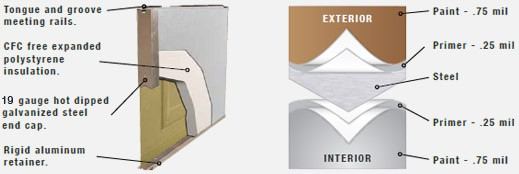

Construction & Paint Layers
